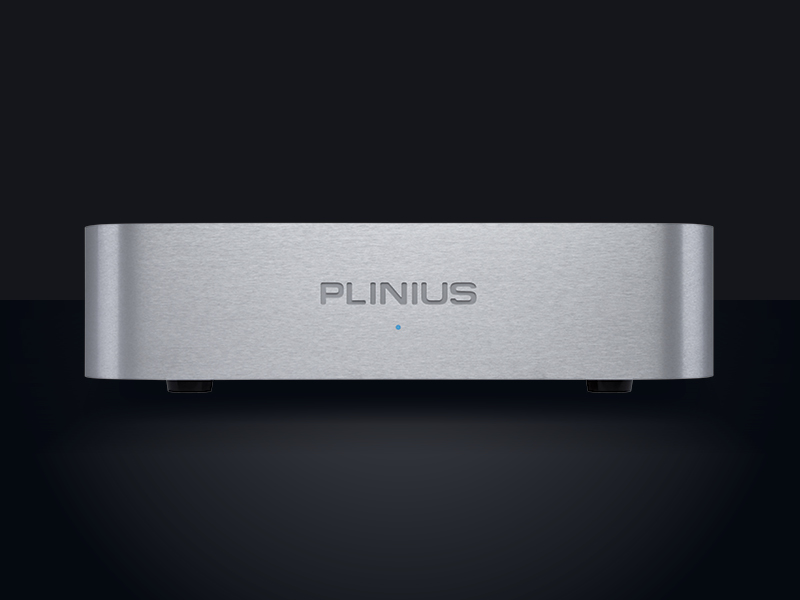

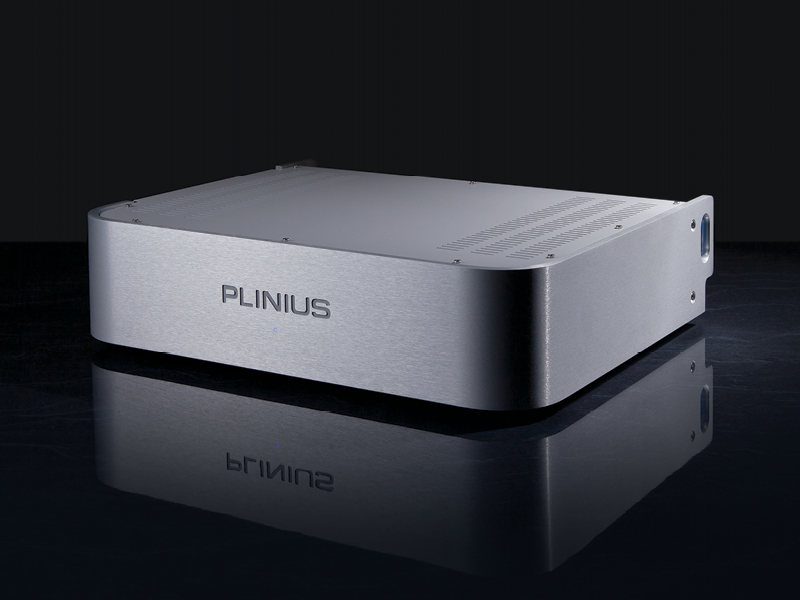

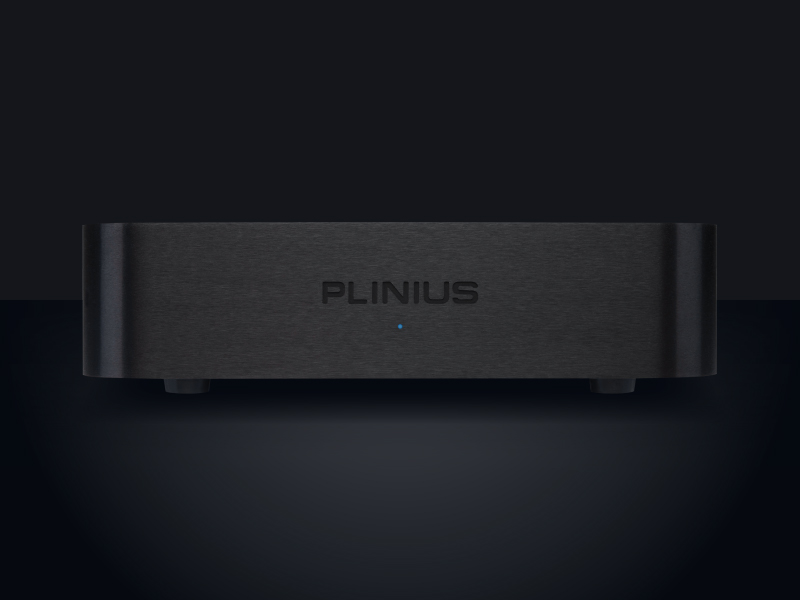

P10 Power Amplifier

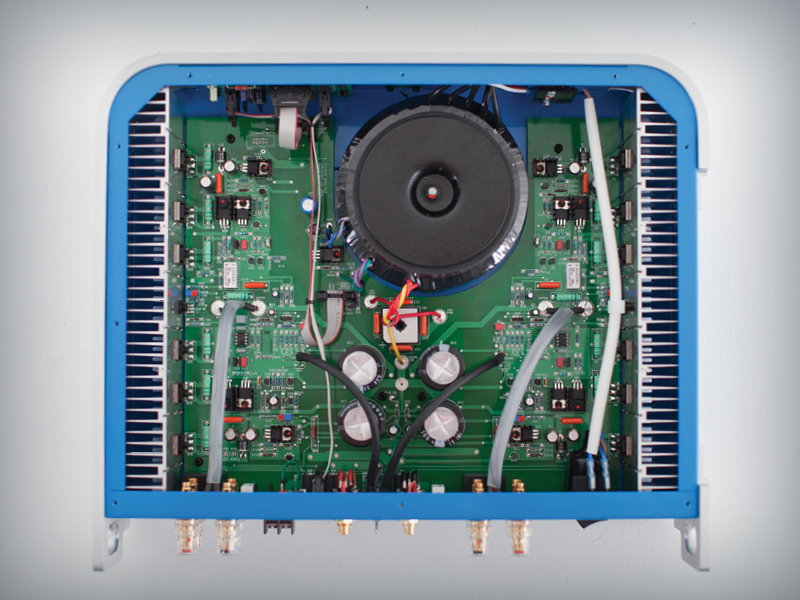

The P10 has a level of sophistication rarely found in such a cost effective product. This amplifier has separate input and driver stage power supply regulation and it is an amplifier capable of true high-end performance.

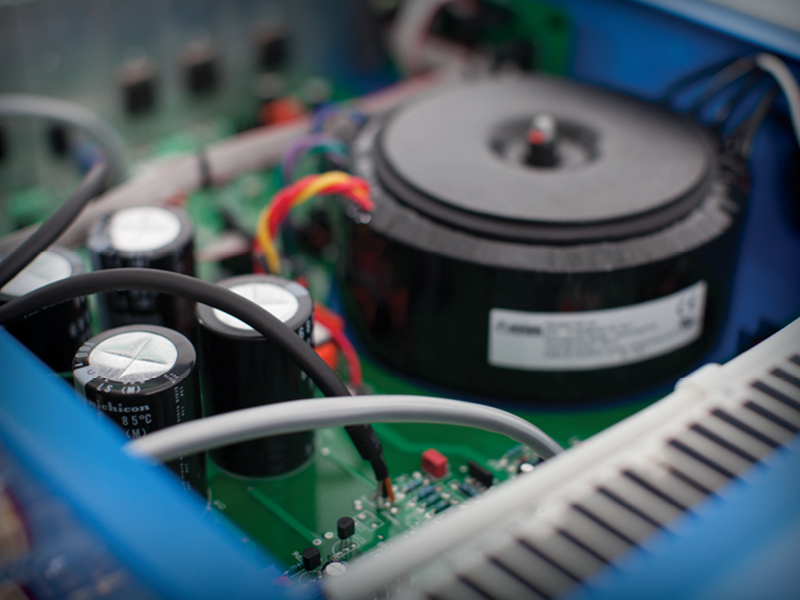

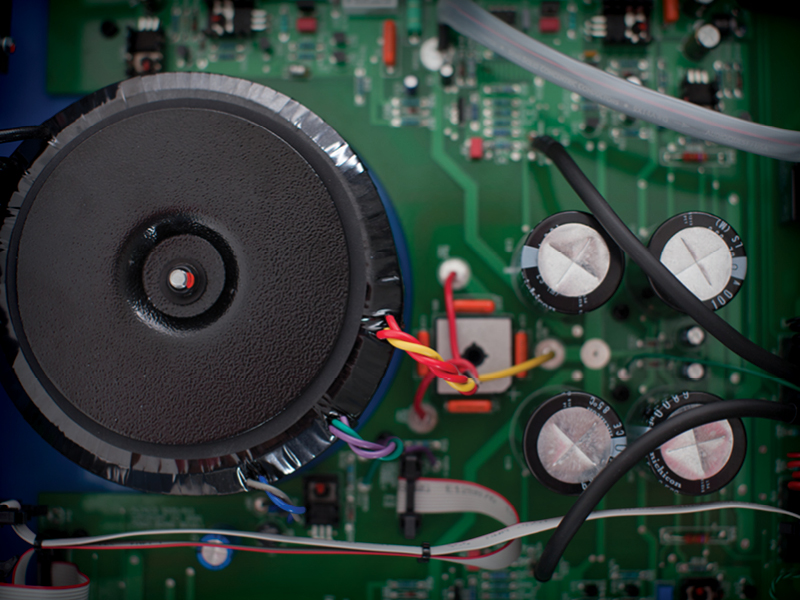

The large toroidal transformer will allow the P10 to deliver power levels in excess of 200 watts per channel into 8 Ohms. Difficult speaker loads are driven with ease to the most satisfying levels, while maintaining control and finesse.

Partnered with the Plinius Kaitaki preamplifier these stable mates will combine to perform at the highest level. The P10 is also highly suited to multiple custom installation use featuring a Home Theatre trigger bypass.









POWER

200 watts RMS per channel into 8 ohms.
300 watts RMS per channel into 4 ohms.
Both channels driven from 20Hz to 20kHz at less than 0.2% total harmonic distortion

FREQUENCY RESPONSE

20Hz to 20kHz +/–2dB
-3dB at 5Hz and –3dB at 70kHz

DISTORTION

Typically <0.05% THD at rated power
0.2% THD and IM worst case prior to clipping

CURRENT OUTPUT

40A short duration peak per channel
Fuse protected

SLEW RATE

50V/µs

HUM & NOISE

90dB below rated output 20Hz to 20kHz unweighted

INPUT IMPEDENCE

47k ohms

GAIN

RCA Inputs: 32dB
XLR Inputs: 38dB

POWER/CURRENT CONSUMPTION

600W
0.4A (92W)
Class AB Idle
0.14A (32W) Standby

DIMENSIONS

Height: 120mm (4 3/4”)
Width: 450mm (17 3/4”)
Depth: 400mm (15 3/4”)
Weight: 14kg (30lbs)

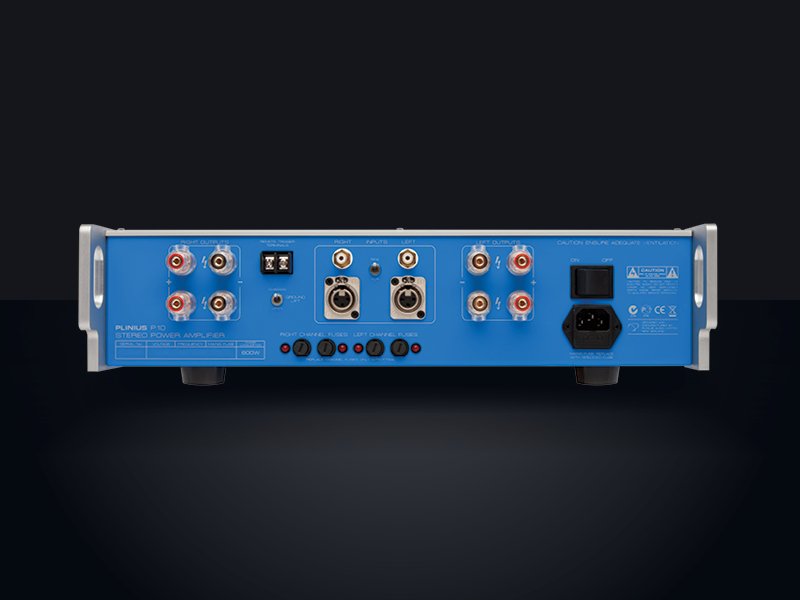

Remote Trigger Input
When connected to a preamplifier trigger output, the amplifier will switch out of Standby and be ready for use when the preamplifier is taken out of standby.

Ground Lift Switch
This allows for the signal ground to be isolated from the main chassis earth. This can assist in resolving unwanted ground loops or hum due to duplicate ground paths in some systems.

WBT and Neutrik Connectors
High quality WBT RCA and Neutrik XLR input connectors are fitted along with WBT output speaker terminals to ensure a low distortion interface between your cables and the amplifier.

Auric Wiring
Audience AV supply the Auric OFC wire used in the input stage of the amplifier. The Auric was chosen for its high workability and natural sound.

AudioQuest Wiring
AudioQuest X2 is used in the output stage of the amplifier as a high quality link to the speaker connectors.
